Marine incinerator repair in Vietnam: mis-fire and oil-pressure faults
Published
SVC Marine investigated mis-fire and waste-oil pressure alarms on a marine incinerator in Vietnam. Our technicians checked burner ignition, oil delivery, atomizing air, sensors and the control circuit, identified the failed components and replaced the I/O-board DC circuit.
The attendance record includes the electrical repair and further parts requirements. For a new incinerator repair enquiry, our electrical and mechanical technicians inspect the reported fault, prepare the appointed worklist and test the repaired equipment against the maker’s procedure.
01
The incinerator fault and onboard inspection

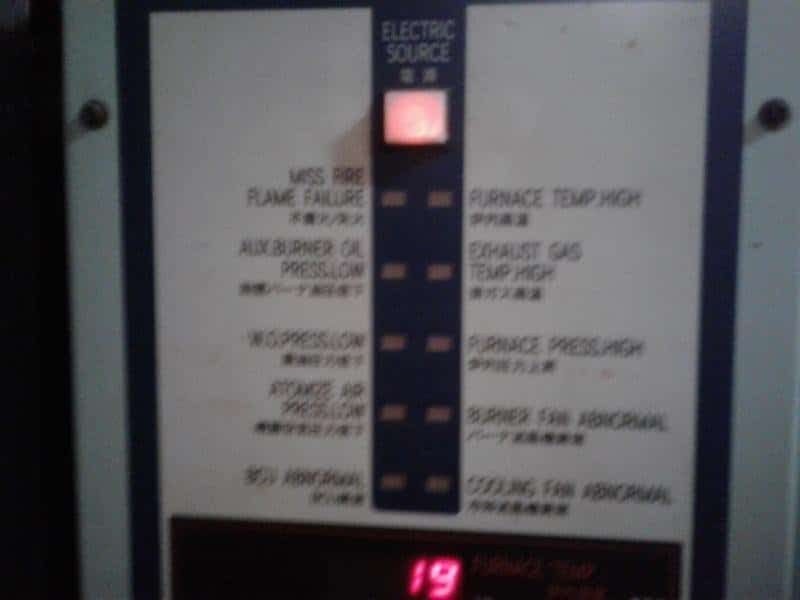

The historical attendance began with repeated mis-fire and waste-oil abnormal alarms. An ignition alarm alone did not identify which part had failed: the technicians traced the start sequence through the burner, oil system, atomizing-air supply and electrical controls.
The original inspection covered the flame eye and ignition condition in the burner, photo cell sensor, solenoid valves and solenoid pump, fuel-oil and diesel-oil filters, limit switches, pipe fittings, atomizing-air pressure, waste-oil pressure and control relays. Each item addressed a different point in the combustion and start sequence.
02
Findings: relay, pump delivery and atomizing-air valve
The I/O-card relay controlling atomizing air and the waste-oil pump was not working properly. A defective fuel-oil pump produced no oil at its outlet during the inspection. The atomizing-air solenoid valve did not open properly. Mis-fire and waste-oil pressure-low alarms occurred after the start attempt.
These findings identify separate electrical, delivery and valve defects. The relay, pump and valve are each handled as a separate item on the repair worklist, with the disposition of each finding recorded.
03
I/O repair, tests and next parts

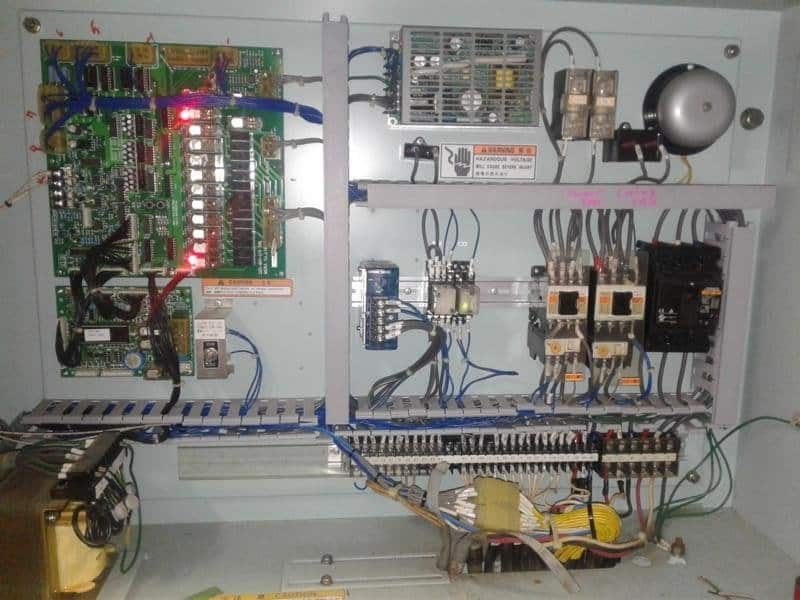

The recorded repair included replacement of the I/O-board DC circuit, system checking, commissioning and tests after the electrical repair. The job also produced a recommendation to repair or replace the waste-oil pump and to replace the atomizing-air solenoid valve.
Pump repair or replacement and atomizing-air valve renewal remained recommendations for the vessel’s next repair decision. The chief engineer can use the identified defects, completed I/O work and test records to plan parts and further attendance.
04
Common marine incinerator symptoms
Ignition failure and interrupted combustion can leave waste oil or sludge awaiting treatment. Start with the exact alarm order and the point where the operating sequence stops, rather than replacing components from the alarm name alone. Similar symptoms can have different causes.
- Mis-fire, failure to ignite or repeated stops during combustion.
- Waste-oil pressure-low alarm, or a running pump with no oil delivery.
- Abnormal atomizing-air pressure or a solenoid valve that does not open.
- Flame-eye or photo-cell sensor faults, dirty filters and burner condition.
- Fuel-oil or diesel-oil pump faults; abnormal burner fan, cooling fan or pump operation.
- Control relay, I/O-board, limit-switch or start-sequence faults.
05
Burner, flame detection and ignition checks

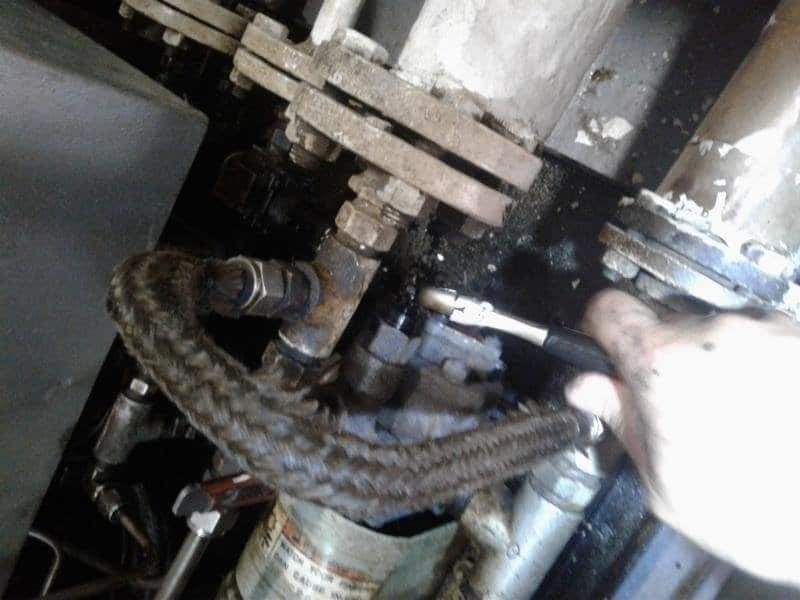

SVC technicians inspect and clean the burner within the appointed scope, examine the flame eye and photo cell, and check ignition components against the maker’s drawing and operating sequence. Burner condition, flame detection and the delivered oil-and-air mixture must be examined together.
Inspection records should identify what was checked or cleaned, the readings obtained and the defects that remain. A service enquiry can include burner and sensor inspection without implying that every component must be replaced.
06
Fuel-oil pump, waste-oil pump and oil delivery

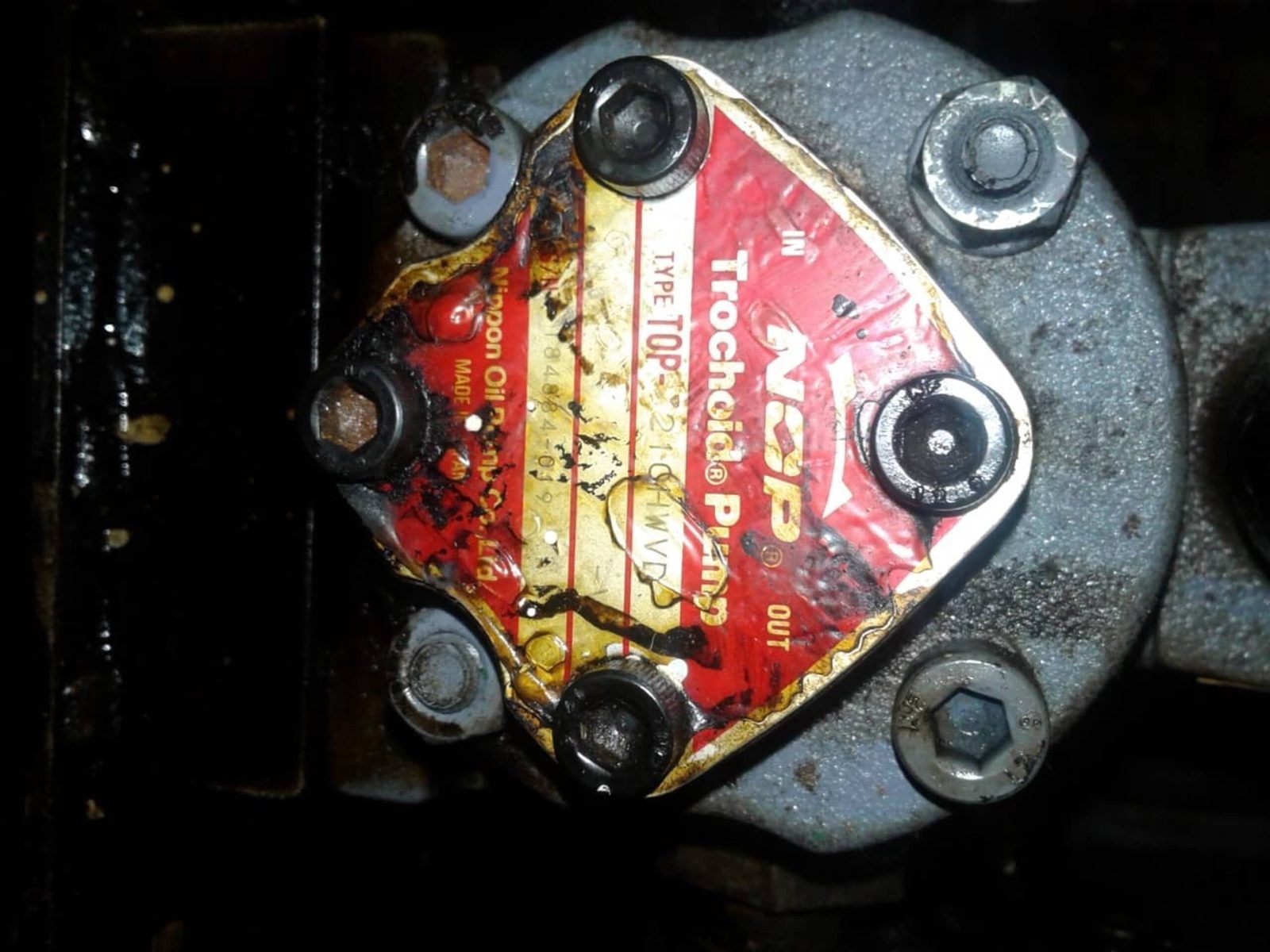

Where a pump runs but oil is not delivered, the inspection addresses the pump, relief valve, suction condition, filter, valve positions, outlet line and related control signal. Our technicians check the fittings and oil-delivery path as well as the electrical command.
The worklist can include pump inspection, filter cleaning or renewal, fittings and oil-line repairs, and repair or replacement of the identified pump. State the maker, model and available spares before deciding the parts scope. Fuel-oil and waste-oil equipment must remain separately identified in the findings and quotation.
07
Atomizing air and solenoid valves

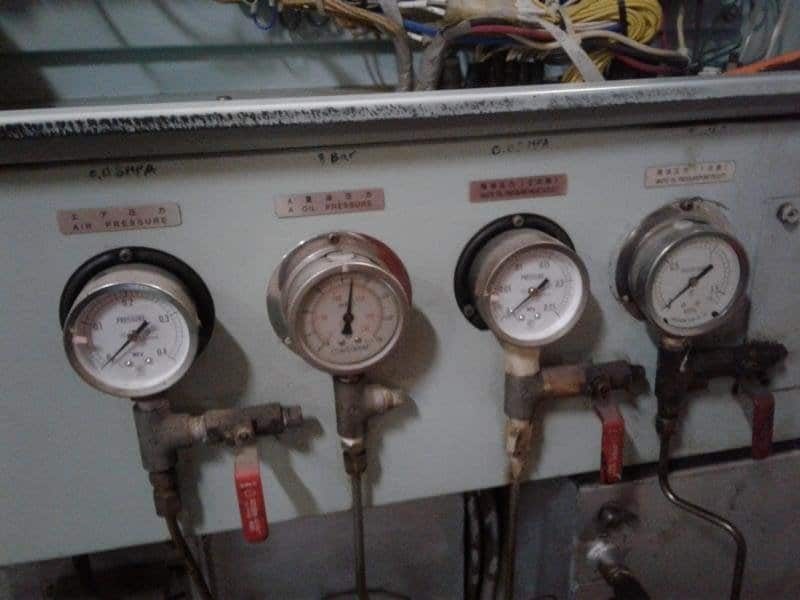

Poor atomization or a failed valve can prevent the correct air or oil supply from reaching the burner. Our technicians inspect the pressure condition, valve operation and associated control signal, then clean, test, repair or replace the selected component as agreed.
The quotation should identify the specific valve, fittings and parts required, together with the checks after refitting. Spare availability and the inspected condition determine the proposed repair. Identify each component against the equipment drawing before ordering.
08
Control circuit, I/O board and electrical fault finding

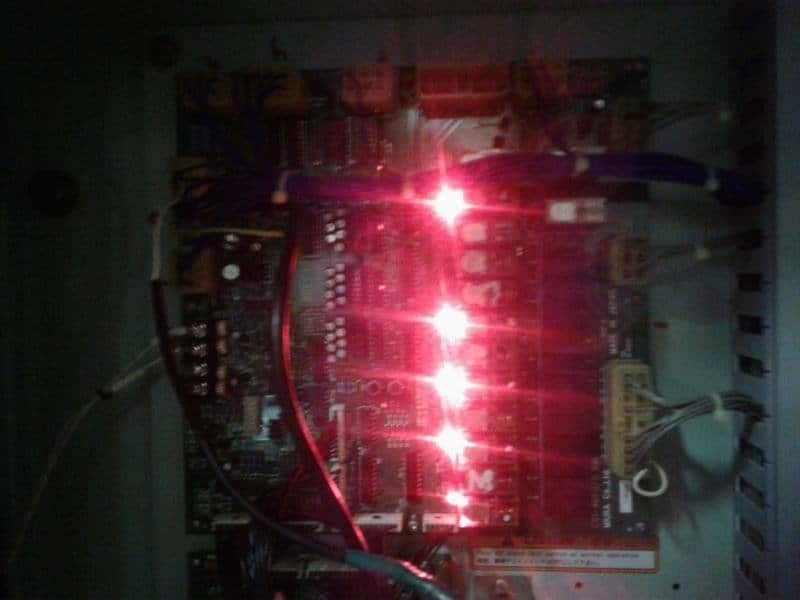

SVC electrical technicians check relay logic, the I/O board, signal inputs, output commands, sensor feedback and safety-interlock conditions against the maker’s circuit drawing and actual onboard wiring. Loose terminals, poor insulation or an incorrect relay can introduce further faults.
The appointed electrical worklist identifies the failed circuit or component and the checks needed after repair. Keep diagnostic findings, component changes and functional test results in the completion record so the chief engineer can trace the work.
09
Safe isolation and operating protections
Incinerator fault finding belongs to competent personnel working under the vessel’s isolation, access and machinery-space safety procedures. Pressure switches, thermostats, flame detection, limit switches and interlocks protect the crew and equipment. They must remain effective for normal operation.
Do not operate the incinerator with safety switches or interlocks bypassed. If a protection device is suspected to be defective, identify and repair or replace the fault, test the relevant circuit and restore all protections before returning the equipment to service. Agree the safe work boundary and any witnessing requirements before attendance.
10
Repair scope and test records
An incinerator worklist may combine burner cleaning; ignition, flame-eye and photo-cell checks; pump, filter and valve work; atomizing-air and oil-pressure checks; limit-switch and interlock checks; I/O-board and relay repairs; and fittings or oil-line work. SVC quotes the selected electrical and mechanical tasks against the actual reported condition.
After the appointed repair, carry out the agreed functional tests and commissioning checks using the maker’s procedure. Record the observed start and alarm sequence, the components changed and the results; state any outstanding fault or operating limitation rather than assuming a successful outcome.
SVC can provide the repair summary, photographs, findings, replaced-parts list, remaining recommendations and spare-parts requirement. The documents distinguish what was performed from what still needs owner approval, parts or further attendance.
11
Incinerator repair attendance at Vietnam ports
SVC provides machinery and electrical repair attendance at selected Vietnamese ports, anchorages and shipyards. Send the actual terminal or anchorage, boarding arrangements and available repair window so the work can be planned around the port call.
Locations for an enquiry include Hai Phong, Hon Gai, Cam Pha, Cai Lan, Nghi Son, Cua Lo, Vung Ang, Son Duong, Hon La, Chan May, Da Nang, Dung Quat, Quy Nhon, Nha Trang, Vinh Tan, Vung Tau, Phu My, Cai Mep and the Ho Chi Minh City area. Confirm the particular attendance and access in the quotation.
For the central-port worklist, see incinerator repair at Vung Ang, boiler work at Son Duong and air-compressor repair at Chan May. The ship repair service covers wider machinery and electrical enquiries.
Our commissioned incinerator repair scope covers bulk carriers, tankers, container ships, general cargo vessels, offshore vessels, tugs and other commercial ships calling Vietnam. Send the incinerator maker/model, fault sequence and work window so our technicians can define the repair scope.
12
Send the fault and port-call details
Send the incinerator fault with equipment particulars and defect photographs through SVC’s private repair contact. A useful first worklist includes:
- Vessel reference, vessel type and current port, terminal or anchorage.
- ETA, ETB, ETD and the available inspection and repair window.
- Incinerator maker and model, nameplate photographs and relevant equipment references.
- Exact alarms, fault history and the observed start or shutdown sequence.
- Photographs of the control panel, burner, pumps, solenoid valves and affected fittings.
- Circuit diagrams and the relevant maker’s manual pages, where available.
- Spares already onboard and components for which a supply quotation is required.
- Whether the reported fault is electrical, mechanical, burner-related or still unknown.
- Chief engineer, owner’s superintendent, class or flag requirements relevant to the appointed work.
13
Frequently asked questions
Does SVC Marine repair waste-oil incinerators in Vietnam?
Yes. SVC technicians carry out the appointed burner, ignition, pump, valve, oil-line and electrical fault-finding tasks, with agreed functional tests and completion records. Send the defect and port-call details to define the attendance and parts scope.
What can cause a mis-fire alarm?
Possible causes include ignition failure, a dirty flame eye, a photo-cell fault, poor oil delivery, low waste-oil pressure, poor atomizing air, a defective solenoid valve, burner condition or a control-circuit fault. The alarm sequence and inspection determine the cause; the alarm label alone does not.
Can SVC check incinerator electrical faults?
Our electrical technicians examine relay logic, I/O-board inputs and outputs, sensor feedback, interlock signals and the actual wiring against the maker’s drawing. The worklist separates diagnosis, component replacement and tests after the appointed repair.
Can an incinerator run with safety switches bypassed?
No. Do not bypass switches or interlocks for normal operation. Competent personnel identify the fault under controlled isolation and diagnostic procedures, repair or replace the affected component, test the circuit and restore all protections before return to service.
What should an owner send for a repair enquiry?
Send the vessel reference privately, exact port or anchorage, ETA and work window, incinerator maker/model, alarms and fault history, relevant photographs, available spares and circuit drawings. Include the chief engineer’s or other applicable technical and witnessing requirements.
